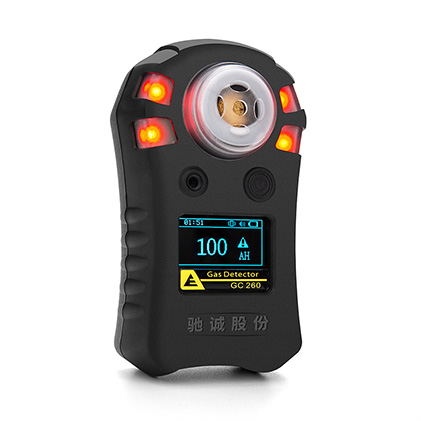

GC260 portable detector is a portable gas alarm with intrinsic safety (detector hereinafter ) , which can continuously monitor combustible gas, oxygen,toxic gas density.
oem/odm
The detector monitors combustible gas, oxygen,toxic gas density and is widely used in metallurgy, electric factory, chemical, mines, tunnels, confined space, underground pipes etc, effectively prevent toxic accident.
GC260 portable detector is a portable gas alarm with intrinsic safety (detector hereinafter ) , which can continuously monitor combustible gas, oxygen,toxic gas density. It is applied for ozon gas leak detection, rescue, and also applied in the surroundings such as underground pipe and mine, confined space to keep the workers safe from invasion of hydrogen damage to equipment.
♦ IP67, EX ia IICT4 Gb for comosve higherhumidty, highertemperature application.
♦ Premium Gas Sensor;100% Calilratio for 10 √points and 100%QC.
♦ Gas Sensor Module for Free Maintenance.
♦ 1 year warranty &New replacement within 3 months.
♦ Imported microp-rocessor with low power consumption.
♦ Sensor Self-diagnosis.
| Model | GC260 |
| Gas Detection | Single Gas(Toxic gas combustible gas or oxygen) |
| Gas Range | As per request |
| Indication Accuracy | ±3%F.S. |
| Operating Temperature | -20°C~+60°C- |
| Working Time | >10h for combustible gas >500h for toxic gas |
| Ingress Protection | IP67 |
| Explosion Proof | Ex ia IIC T4 Gb |
| Display | OLED.1.92 inch |
| Alarm | Visual .audible .vibration |
| Power Supply | 3.7V 2000mA rechargeable Li-ion battery |
| Charging Time | <4h |
| Calibration | Up to 10 points calibration. One-click automatic calibration and automatic zero multi-point calibration can be performed manually.. |
| Sampling Method | Natural diffusion |
| Enclosure | Strong durable and shockproof. |
| Data logging | 500 data. Alarm data Operation data and Fault data |
| Communication | USB bluetooth |
| Dimension | 109mm(L)x64mm(W)x30mm(H) |
| Weight | 200g(battery included) |
Oil and Gas drilling
Metallurgy
Mining industry
Power Plant
Steel plant
Gas pipeline project
