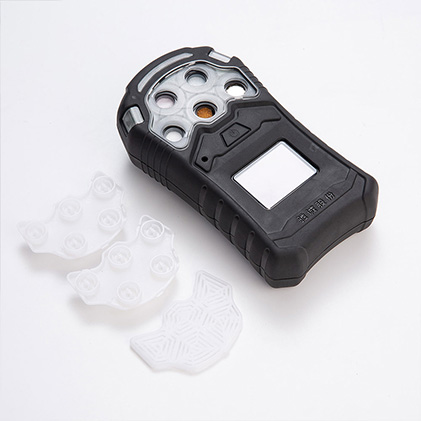

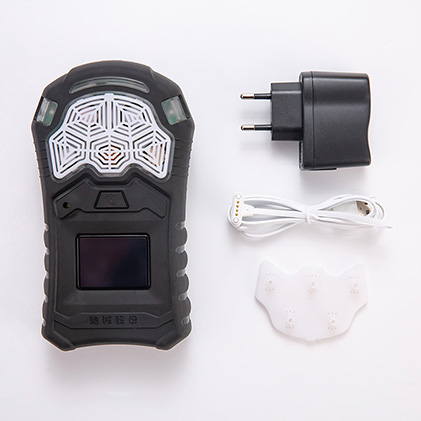

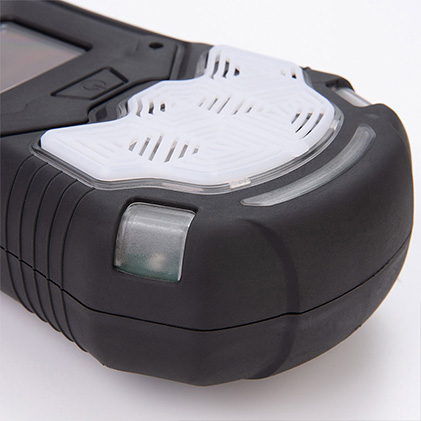

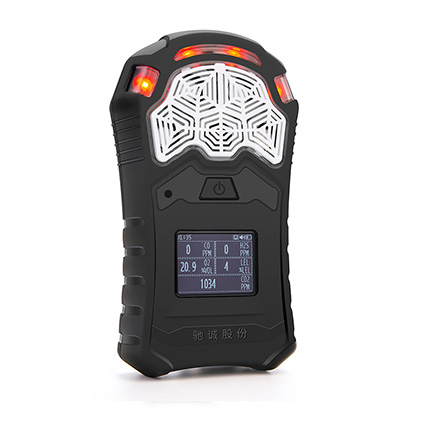

GC610 is a portable multi gas detector for multi-gases(up to 5 gases) leak detection. It can be set with catalytic combustion, electrochemical,PID,Infrared sensor.
oem/odm
STEL and TWA monitoring; Atmosphere monitoring; Monitoring for cleanliness of environment; Petroleum and chemical plant; Entering of sealing space; Quick respond for dangerous substance/ chemical weapon; Industrial paints; Leakage detecting; IAQ monitoring of indoor air quality; Soil pollution monitoring.
GC610 is a portable multi gas detector for multi-gases(up to 5 gases) leak detection. It can be set with catalytic combustion, electrochemical,PID,Infrared sensor. The normal gases detected are CO2, CO, H2S, O2, LEL(CH4O)while it can be set to monitor other four gases. GC610 has large OLED screen and two instant alarms with audio/visual and vibratory indicators, making it a favorite indicator for operators working in demanding industrial environments.
♦ OLED display, suitable for working temperature -40°C—70°C - OLED
♦ Modular design
♦ Large easy to read display of emblems, instantaneous value, peak value, TWA and STEL.
♦ Self test function: Self-testing upon start up or need for display, battery, sensor and alarm
♦ Warning Indicator: regular flashing light and audible alarm
♦ Up to 5 gases design; Protection grade IP67
| Model | GC610 |
| Gas Detection | Up to 5 gases in one device(Toxic gas combustible gas or oxygen) |
| Gas Range | As per request |
| Indication Accuracy | ±3%F.S. |
| Operating Temperature | -40°C~70°C |
| Working Time | >10h for combustible gas >500h for toxic gas |
| IP67 | |
| Explosion Proof | Ex ia IIC T4 Gb |
| Display | OLED.1.92 inch |
| Alarm | Flicker three color LED warning lamp LCD display 90dB pulse output vibration. |
| Power Supply | 3.7V 5000mA rechargeable Li-ion battery |
| Charging Time - | <5h |
| Calibration | Up to 10 points calibration. One-click automatic calibration and automatic zero multi-point calibration can be performed manually. |
| Sampling Method | Natural diffusion |
| Enclosure | Strong durable and shockproof. |
| Data logging | 1000 Alarm data Operation data and Fault data |
| Communication | USB bluetooth |
| Dimension | 171mm(L)x95mm(W)x43mm(H) |
| Weight | 460g(battery included) |
Oil and Gas drilling
Metallurgy
Mining industry
Power Plant
Steel plant
Gas pipeline project
