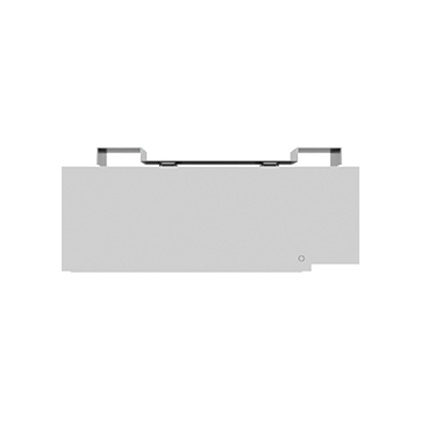

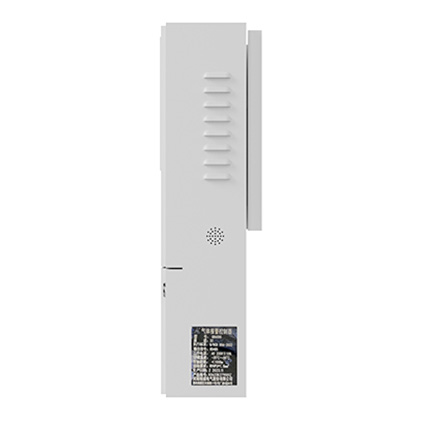

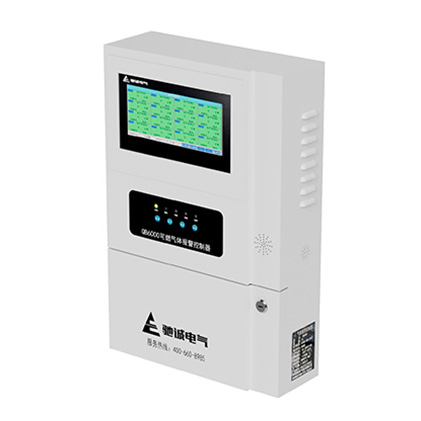

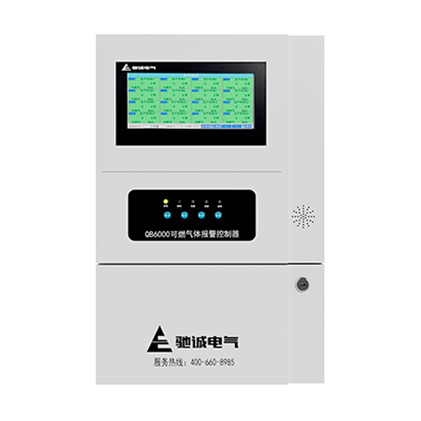

QB6000 Gas Alarm Controller

QB6000 Gas Alarm Controller (hereinafter referred to as the controller) is a gas alarm controller based on touch screen control developed by our company. The controller is practical, easy to operate, and can be used together with our gas detectors to form an industrial gas alarm system. The controller can access 1-4 standard RS485 signals or (4~20)mA analogue signals to connect with the detectors, and at the same time upload the standard RS485 signals to the upper computer, thus constituting a multilevel monitoring network of remote monitoring, local monitoring and on-site monitoring, which greatly improves the real-time and accuracy of monitoring. The alarm system composed of this controller and detectors can be widely used in chemical plants, oil depots, liquefied petroleum gas stations, gas stations, petrol stations, paint spraying booths and other places where fire prevention and toxic gas leakage are required to carry out safety detection and alarm.

♦ 10 inch touch screen, point to point touchable

♦ Adjustable high and low alarm points

♦ Colour-coded alarm and fault information

♦ Intelligent voice alarm prompts

♦ 24-hour digital clock

♦ Alarm records can be exported to USB memory stick

♦ Multi-level password to facilitate authority management

♦ Fast response time for querying detectors

♦ Support two RS485 data upload, support MODBUS protocol, optional TC200, Aurina protocol.
